Cultivator
Cultivator is mainly used for the preparation of the soil before sowing. It helps farmers to uproot weeds and mix crop residue, manure, and fertilizers with the soil. It can be also used after sowing the crops to stir up the soil near them.

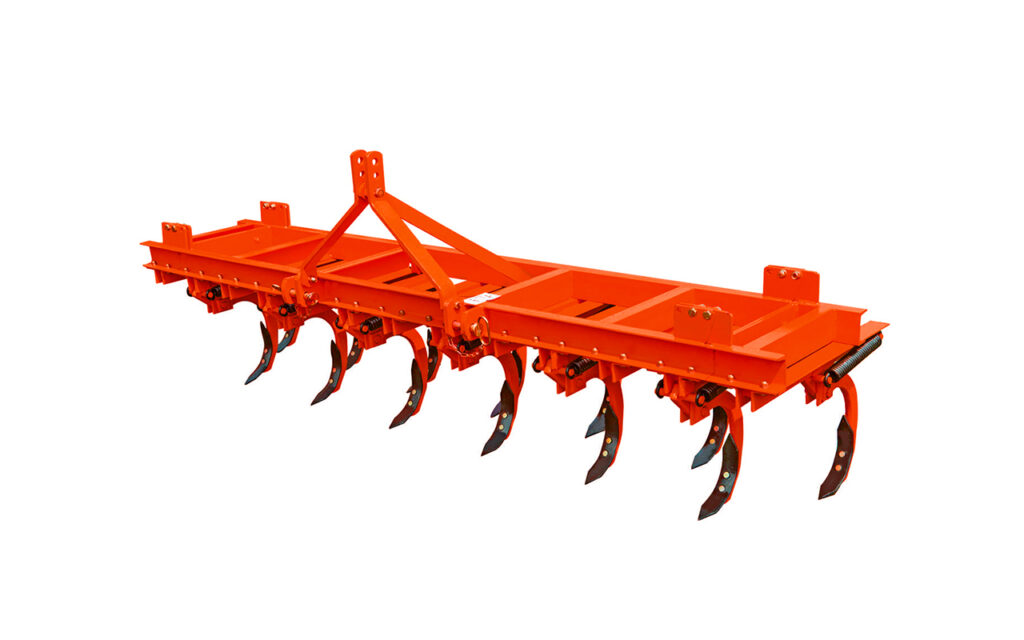

Rigid Cultivator
- Heavy duty angles give strength to spring loaded assemblies
- Heavy Duty Spring Loaded Cultivator is suitable for use in stone and root obstructed soil.
- Unique design of spring helps to absorbing shock.
| Model | Length (mm / Inches) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|
| SS-RTC-9 | 2010 (79") | 765 | 1055 | 270 |
| SS-RTC-11 | 2468 (97") | 765 | 1065 | 330 |
- Frame (mm) - 72x6 Box & 65x6 Angle Centre Support
- Tyne (mm) - Fabricated Single piece 20/22/25/28
- Shovels - 3 Hole Reversible
- 3 Point Linkage (mm) - 65x16 Front & 50x16 Rear
Spring Cultivator
- Heavy duty angles give strength to spring loaded assemblies
- Heavy Duty Spring Loaded Cultivator is suitable for use in stone and root obstructed soil.
- Unique design of spring helps to absorbing shock.
| Model | Frame (mm) | Length (mm / Inches) | Tyne | Anchor Pin (mm) | Weight (Kg) |
|---|---|---|---|---|---|
| SS-STC-7 | 75x40 (SAIL Channel) | 1575 (62") | 50x25mm (Forged) | 22 | 220 |
| SS-STC-9 | 75x40 (SAIL Channel) | 2032 (80") | 50x25mm (Forged) | 22 | 270 |
| SS-STC-11 | 75x40 (SAIL Channel) | 2489 (98") | 50x25mm (Forged) | 22 | 330 |
| SS-STC-13 | 75x40 (SAIL Channel) | 2946 (116") | 50x25mm (Forged) | 22 | 440 |
| SS-STC-15 | 75x40 (SAIL Channel) | 3404 (134") | 50x25mm (Forged) | 22 | 500 |
- Spring (mm) - WD 10 x OD 49 (28 Coils)
- Shovel - 8mm En-45
- 3 Point Linkage (mm) - 50x16 (Front & Rear)
- Pairs (mm) - 65x6 (Angle)
- Tiller Pin (mm) - 27 (Push Tight)
