Disc Harrow
Compact Mounted Disc Harrow
COMPACT OFFSET DISC HARROW is used in open fields working for the superficial ploughing, clods breaking, preparation of soil for sowing and burial of organic substances
- It can be used in both forms i.e.. mounted as well as trailed.
- Easy to transport as it gets easily attached or mounted.
- Frame is made from heavy duty pipe.
- Disc are made of Boron Steel, well hardened and tempered.
- Working angles can be easily adjusted.
| Model | No. of disc | Width of Cut (mm/inch) | No. of Bearing Hubs | Weight (Kg) |
|---|---|---|---|---|
| SS-HDHH-20 | 20 | 2300 (90") | 8 | 1630 |
| SS-HDHH-22 | 22 | 2500 (98") | 8 | 1760 |
| SS-HDHH-24 | 24 | 2700 (106") | 8 | 1845 |
| SS-HDHH-28 | 28 | 3100 (122") | 8 | 2015 |
| SS-HDHH-32 | 32 | 3500 (138") | 8 | 2170 |
- Frame (mm) - 100x50 (Sail Channel) & 75x10 Angle
- Gang Axle - Square Bar
- Type of Disc - Front (Notched) Rear (Plain)
- Disc Diameter (mm / Inch) - 610 x 4.5T (24") or 660 x 6T (26")
- Distance B/W Disc to Disc (mm / Inch) - 228 (9")

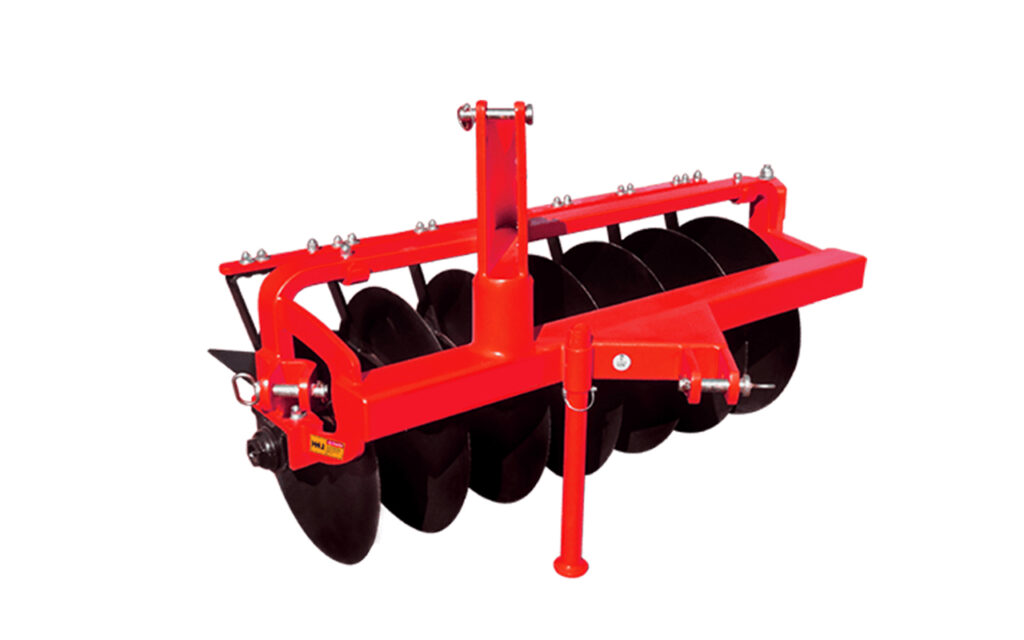

Poly Disc Harrow
DISC HARROW has high tensile strength, robustness, and low noise making. It is used for chopping up soil that has been recently plowed to remove clusters and loosen the soil if it has been crammed. This machine can make all kinds of agricultural soil more suitable and simpler in planting seeds.
- High Quality Boron steel disc with 48-52 HRC hardness.
- High tensile fasteners are used
- For breaking the roots of previous crop.
- Working angles can be easily adjusted
| Model | No. of disc | Width of Cut (mm/inch) | No. of Bearing Hubs | Weight (Kg) |
|---|---|---|---|---|
| SS-PDH-6 | 6 | 1202 (47") | 2 | 319 |
| SS-PDH-7 | 7 | 1453 (57)" | 2 | 335 |
| SS-PDH-8 | 8 | 1704 (67") | 2 | 351 |
- Frame (mm) - 100 mm Square Tubular Frame
- Gang Axle - Square Bar
- Disc Diameter (mm / Inch) - 610x4.5T (24") or 660x6T (26")
- Type of Disc - Notched/Plain
- Distance B/W Disc to Disc (mm / Inch) - 228 (9")
Mounted Offset Disc Harrow
MOUNTED OFFSET DISC HARROW is used in open fields working for the superficial ploughing, clods breaking, preparation of soil for sowing and burial of organic substances.
- It can be used in both forms i.e.. mounted as well as trailed.
- Easy to transport as it gets easily attached or mounted.
- Frame is made from heavy duty pipe.
- Disc are made of Boron Steel, well hardened and tempered.
- Working angles can be easily adjusted.
| Model | No. of disc | Width of Cut (mm/inch) | No. of Bearing Hubs | Weight (Kg) |
|---|---|---|---|---|
| SS-MODH-12 | 12 | 1420 (56") | 4 | 390 |
| SS-MODH-14 | 14 | 1635 (64") | 4 | 430 |
| SS-CMDH-16 | 16 | 1852 (73") | 6 | 500 |
| SS-CMDH-18 | 18 | 2068 (81") | 8 | 575 |
| SS-CMDH-20 | 20 | 2285 (90") | 8 | 615 |
| SS-CMDH-24 | 24 | 2717 (107") | 8 | 730 |
- Frame (mm) - 100x50 (Sail Channel) & 75x10 Angle
- Gang Axle - Square Bar
- Disc Diameter (mm / Inch) - 560 x 4T (22")
- Type of Disc - Front (Notched) Rear (Plain)
- Distance B/W Disc to Disc (mm / Inch) - 228 (9")

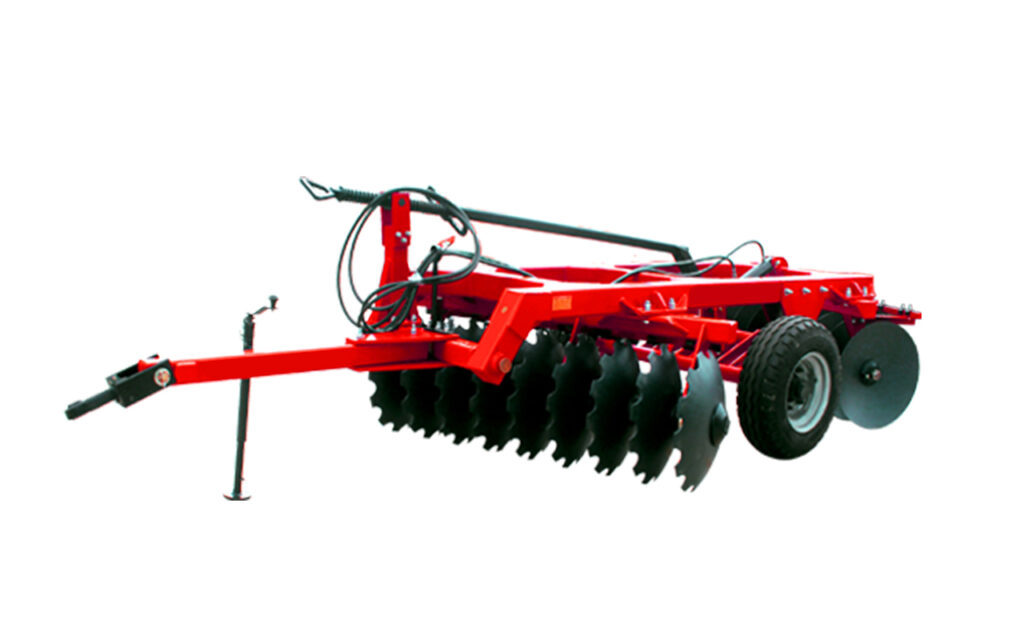

Hydraulic Trailing Type Disc Harrow
HEAVY DUTY OFFSET DISC HARROW & trails behind the tractor and because of heavy design and weight can effectively break up heavy clods and mix with the soil and decays rapidly into humus. The Harrow has a strong and sturdy main frame with boron steel discs and heavy-duty chilled cast iron spools to provide center weight. The optional wheel can be provided for towing the road.
- Frame is made from heavy duty pipe
- High tensile fasteners are used
- Disc are made of Boron Steel, well hardened and tempered.
- For breaking the roots of previous crop.
- Working angles can be easily adjusted.
| Model | No. of disc | Width of Cut (mm/inch) | No. of Bearing Hubs | Weight (Kg) |
|---|---|---|---|---|
| SS-HDHH-20 | 20 | 2300 (90") | 8 | 1630 |
| SS-HDHH-22 | 22 | 2500 (98") | 8 | 1760 |
| SS-HDHH-24 | 24 | 2700 (106") | 8 | 1845 |
| SS-HDHH-28 | 28 | 3100 (122") | 8 | 2015 |
| SS-HDHH-32 | 32 | 3500 (138") | 8 | 2170 |
- Frame (mm) - Square Tubular Frame
- Gang Axle - Square Bar
- Disc Diameter (mm / Inch) - 610 x 4.5T (24") or 660 x 6T (26")
- Pull Type - Trailed
- Type of Disc -Notched & Plain (Optional)
- Gang Adjustment - Manual
- Distance B/W Disc to Disc (mm / Inch) - 228 (9")
