Disc Plough
Disc plough is specially designed to perform all soil types operations like soil turning, soil raising, soil mixing, and soil breaking. It is perfect for rocky and rooted areas
- Mechanical Disc Plough
- Hydraulic Disc Plough
- Mounted Disc Plough
- Hydraulic MB Plough
- Mould Board Plough

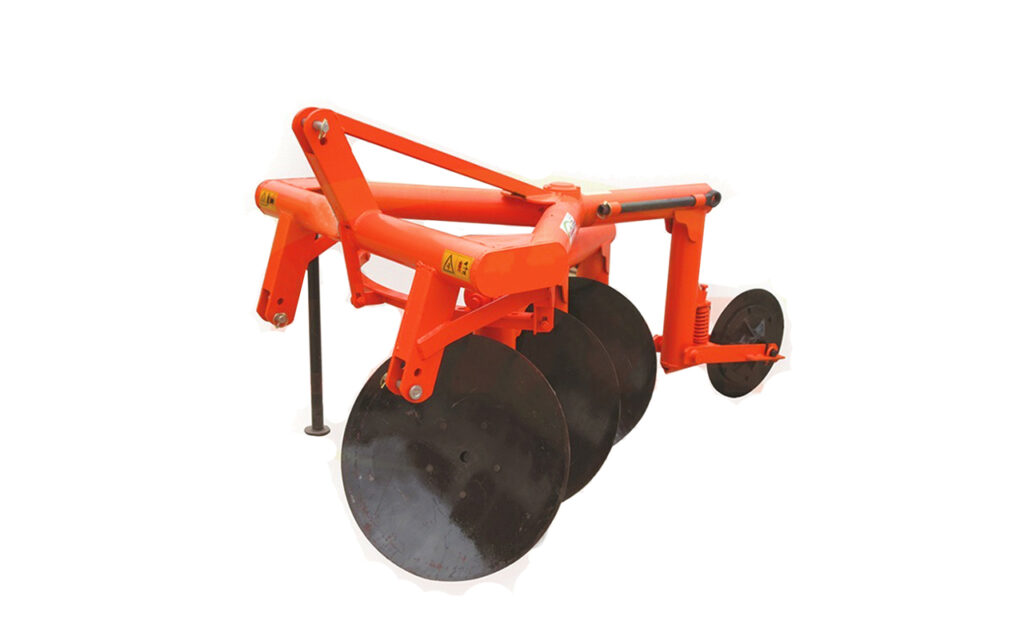

Mechanical Disc Plough
| Model | Frame (mm) | Main Shaft | No. of Discs | Working Width (mm) | Weight (Kg) | Tractor Power (HP) | Overall Length (mm) | Overall Width (mm) | Overall Height (mm) |
|---|---|---|---|---|---|---|---|---|---|
| SS-MRDP2 | 114 mm Round Pipe | 70 mm Round Bar | 2 | 508 | 290 | 35-45 | 1890 | 1180 | 1250 |
| SS-MRDP3 | 114 mm Round Pipe | 70 mm Round Bar | 3 | 762 | 350 | 45-55 | 2250 | 1400 | 1020 |
- Type - 114 mm Round Bar
- Type of Disc / Blade - Boron Steel
- Disc Diameter (mm) - 660 Dia, Thickness 6
Hydraulic Disc Plough
| Model | Frame (mm) | Main Shaft | No. of Discs | Working Width (mm) | Weight (Kg) | Tractor Power (HP) | Overall Length (mm) | Overall Width (mm) | Overall Height (mm) |
|---|---|---|---|---|---|---|---|---|---|
| SS-HRDP-3 | 200x100 Square Pipe | 100 mm Round Bar | 3 | 762 | 525 | 50-75 | 2500 | 1220 | 1285 |
| SS-HRDP-4 | 200x100 Square Pipe | 100 mm Round Bar | 4 | 1118 | 650 | 65-90 | 2815 | 1275 | 1315 |
- Type - 70 mm Round Bar
- Type of Disc / Blade - Boron Steel
- Disc Diameter (mm) - 660 Dia, Thickness 6

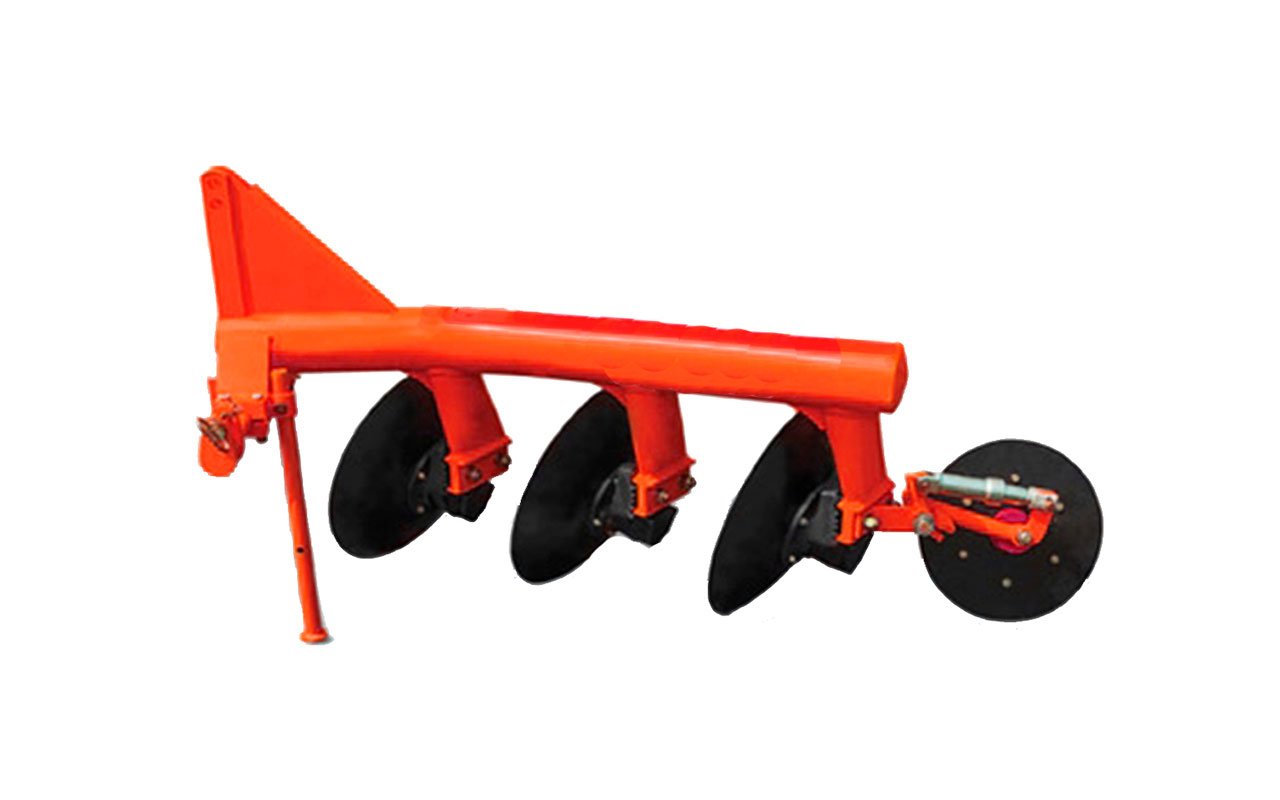

Mounted Disc Plough
Mounted Disc plough is specially designed to perform all soil types operations like soil turning, soil raising, soil mixing, and soil breaking. It is perfect for rocky and rooted areas
- Easily mounted on Tractor.
- High Trash clearance allows plough to operate in high crop residue.
- Specially designed with heavy duty pipe frame for extreme conditions
- Designed to open new fields.
- Suitable in all types of soil.
| Model | Frame (mm) | Axle Type | No. of Discs | Type of Disc | Disc Diameter (mm) | Disc Spacing (mm) | Working Width (mm Appx.) | Weight (kg) | Tractor Power (HP) |
|---|---|---|---|---|---|---|---|---|---|
| SS-MDP-2 | Seamless Tabular (OD- 168, ID 146) | Spindle Type | 2 | Boron Steel | 660 Dia, Thickness 6 | 570 | 500-550 | 310 | 50-60 |
| SS-MDP-3 | Seamless Tabular (OD- 168, ID 146) | Spindle Type | 3 | Boron Steel | 660 Dia, Thickness 6 | 570 | 875-925 | 410 | 65-80 |
| SS-MDP-4 | Seamless Tabular (OD- 168, ID 146) | Spindle Type | 4 | Boron Steel | 660 Dia, Thickness 6 | 570 | 1150-1200 | 510 | 85-100 |
| SS-MDP-5 | Seamless Tabular (OD- 168, ID 146) | Spindle Type | 5 | Boron Steel | 660 Dia, Thickness 6 | 570 | 1575-1625 | 620 | 105-125 |

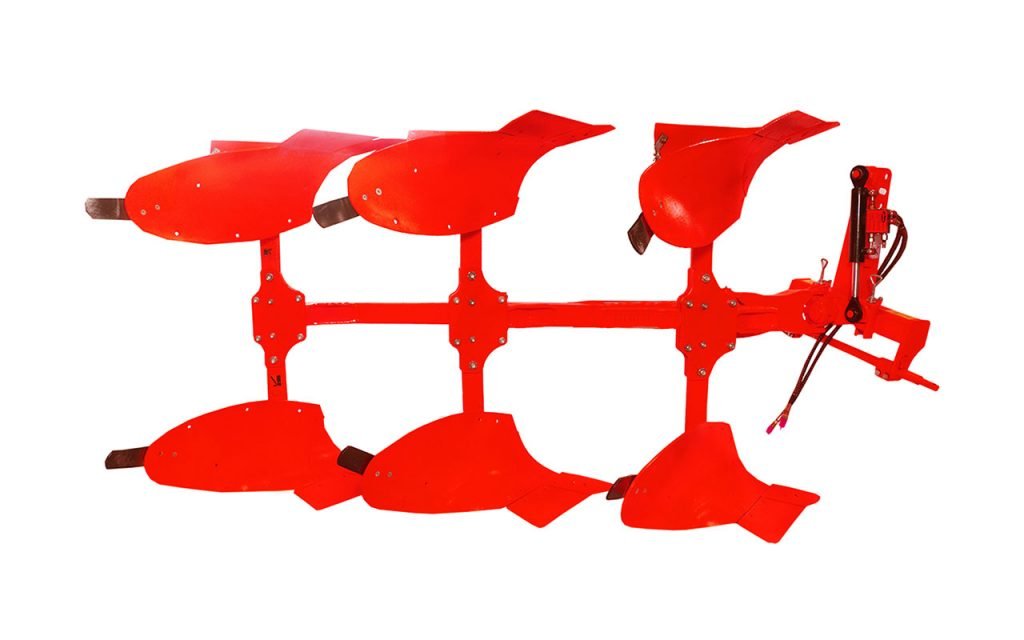

Hydraulic Reversible MB Plough
Hydraulic Reversible MB Plough is suitable for land preparation. It aids in breaking the hardpan of soil and upturning the crop stubbles.
- The Ground clearance from under frame and unit to unit clearance are adequate to cope with trashy conditions.
- Bar point having longer life, as they can be extended till the last possible length.
- It is designed to work in all types of soil for basic function such as soil breaking soil rising and soil inversion
- It can be used in stony & rooted soil too.
| Model | Frame (mm) | Main Shaft | Type | Working Width (mm) | Height (Inch) | Blade (mm) | Mould Board (mm) | Weight | Tractor Power (HP) |
|---|---|---|---|---|---|---|---|---|---|
| SS-HRP-2 | 90X90 (Sq Pipe) | 65 | 80x25 | 20-28 | 58 | 10 | 8 | 400 | 50 HP |
| SS-HRP-3 | 90X90 (Sq Pipe) | 65 | 80x25 | 30-42 | 58 | 10 | 8 | 540 | 65 HP |

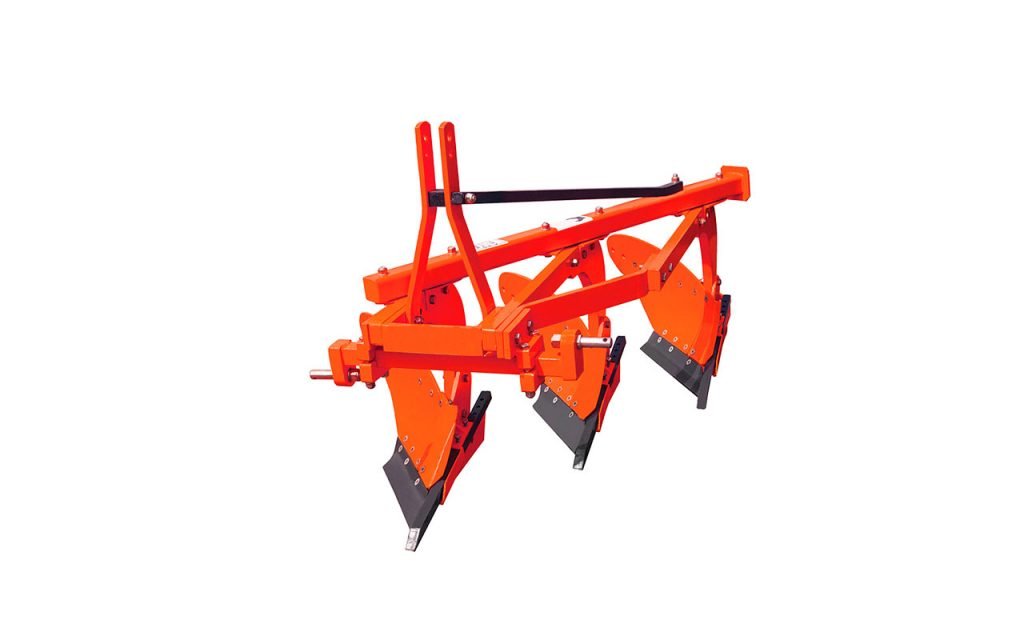

Mould Board Plough
Mould Board Plough has a robust steel blade with bar points for the toughest ploughing jobs.MB plough is a primary tillage implement that consists of a share point, share, mouldboard, landside, and frog, shank, frame and hitch system. The working of the plough is controlled by the hydraulic system of the tractor.
- It gives very good penetration of soil.
- Designed to work in all types of soil.
| Model | Frame (mm) | No of Furrows | Length (mm) | Height (Inch) | Blade (mm) | Width of Cut (mm) | Depth of Cut (mm) | Weight (kg) | Tractor Power (HP) |
|---|---|---|---|---|---|---|---|---|---|
| SS-MBP-2 | 80X80X7 | 2 | 1300 | 42 | 54x100x10 | 610 | 350 | 215 | 35-40 |
| SS-HRP-3 | 80X80X7 | 3 | 1880 | 42 | 54x100x10 | 910 | 350 | 320 | 55-60 |
| SS-MBP-4 | 80X80X7 | 4 | 2460 | 42 | 54x100x10 | 1210 | 350 | 430 | 80-90 |
