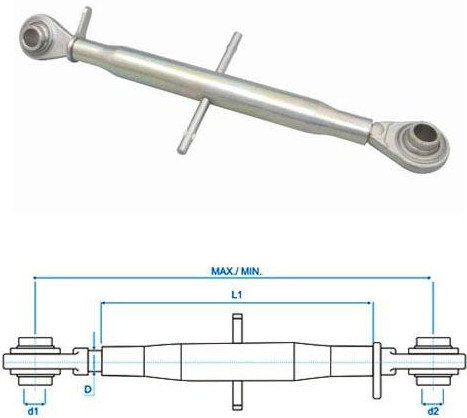

Top link assembly
| CODE | CAT D1-D2 | PIPE L1(MM) | THREAD D |
|---|---|---|---|
| SF084 | 1-1 | 430 | M27X3 |
| SF085 | 1-2 | 430 | M27X3 |
| SF086 | 2-2 | 430 | M27X3 |
| SF087 | 1-1 | 450 | M27X3 |
| SF088 | 1-2 | 450 | M27X3 |
| SF089 | 2-2 | 450 | M27X3 |
| SF090 | 1-1 | 470 | M27X3 |
| SF091 | 1-2 | 470 | M27X3 |
| SF092 | 2-2 | 470 | M27X3 |
| SF093 | 1-1 | 500 | M27X3 |
| SF094 | 1-2 | 500 | M27X3 |
| SF095 | 2-2 | 500 | M27X3 |
| SF096 | 1-1 | 550 | M27X3 |
| SF097 | 1-2 | 550 | M27X3 |
| SF098 | 1-2 | 550 | M27X3 |
| SF099 | 2-2 | 550 | M27X3 |
| SF100 | 2-2 | 570 | M27X3 |
| SF101 | 1-1 | 600 | M27X3 |
| SF102 | 1-2 | 600 | M27X3 |
| SF103 | 2-2 | 600 | M27X3 |
| SF104 | 1-1 | 650 | M27X3 |
| SF105 | 1-2 | 650 | M27X3 |
| SF106 | 2-2 | 650 | M27X3 |
| SF107 | 1-1 | 700 | M27X3 |
| SF108 | 1-2 | 700 | M27X3 |
| SF109 | 2-2 | 700 | M27X3 |
| SF110 | 1-2 | 320 | M27X3 |
| SF111 | 1-2 | 400 | M27X3 |
| SF112 | 1-2 | 450 | M27X3 |
| SF113 | 1-2 | 500 | M27X3 |
| SF114 | 2-2 | 320 | M27X3 |
| SF115 | 2-2 | 400 | M27X3 |
| SF116 | 2-2 | 450 | M27X3 |
| SF117 | 2-2 | 500 | M27X3 |
